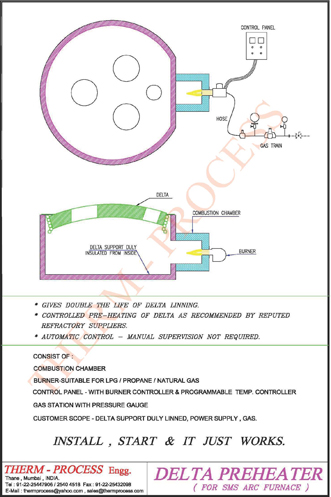

| The system is specifically designed for curing of Delta Monolithic lining.
The total installation requires space of about 12 Sq.mtr & can be conveniently located in SMS bay. |
| |
| The typical curing cycle shall be 36-48 hours as recommended by refractory supplier |
| |
| The duly lined delta shall be placed on circular support casing with combustion chamber. |
| |
| A Monoblock burner suitable for LPG/PNG is fitted on combustion chamber. The burner operation is totally automatic with built in blower, auto ignition & auto cut off. |
| |
| Once the Delta is placed, the Burner can be started with "Burner ON' push button provided on control panel. |
| |
| The temperature controller provided on panel can be programmed to 8 Ramp / Soak cycles. The Burner shall operate as per signals from temperature controller & thermocouple. |
| |
| At the end of the cycle system stops automatically. |
| |
 |
| |
 |
| |
