BLU - FLAME Gas Burners Series
64 |
|
|
|
|
|
|
|
|
- Proven
Design
- Trouble
free operation.
|
|
|
Applications |
- Re-heat
Furnaces.
- Forge
Furnaces.
- Non
Ferrous Melting Furnaces.
- Air
Heaters , Dryers.
|
- Bell
Furnaces , Pit Furnaces.
- Klins.
- Heat
Treatment Furnaces.
- Ovens.
|
|
|
|
|

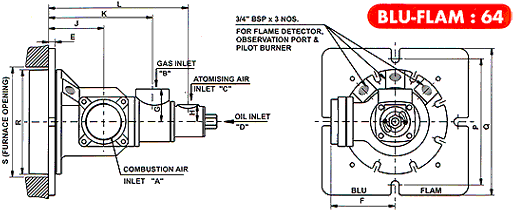

Burner
Designation |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
P |
Q |
R |
S |
64
-2 |
1 1/4" |
1" |
3/4" |
3/8" |
14 |
140 |
67 |
35 |
115 |
216 |
290 |
261 |
304 |
216 |
240 |
64
-3 |
1 1/2" |
1" |
3/4" |
3/8" |
14 |
140 |
67 |
35 |
115 |
216 |
290 |
261 |
304 |
216 |
240 |
64
-4 |
2" |
1 1/4" |
3/4" |
3/8" |
14 |
140 |
67 |
35 |
115 |
216 |
290 |
261 |
304 |
216 |
240 |
64
-5 |
21/2" |
1 1/2" |
1" |
3/8" |
14 |
140 |
67 |
35 |
115 |
216 |
290 |
261 |
304 |
216 |
240 |
64
-6 |
3" |
1 1/2" |
1" |
3/8" |
14 |
140 |
67 |
35 |
115 |
216 |
290 |
261 |
304 |
216 |
240 |
|
|
Total
Air Capacities in Cubic Meter Per
Hour
(
Multiply by 35.28 to get CFH ). |
Burner
Designation |
64
-2 |
64
-3 |
64
-4 |
64
-5 |
64
-6 |
Air
Pressure At Burner |
|
|
|
|
|
Combustion
& Atomising Air at 625 mm
(25") WG |
70 |
110 |
180 |
295 |
450 |
Combustion
& Atomising Air at 950 mm
(38") WG |
85 |
135 |
220 |
350 |
540 |
|
|
Oil Capacities in Liters Per Hour |
Burner
Designation |
64
-2 |
64
-3 |
64
-4 |
64
-5 |
64
-6 |
Air
Pressure At Burner |
|
|
|
|
|
Combustion
& Atomising Air at 625 mm
(25") WG |
6.0 |
9.5 |
15.5 |
25.5 |
39 |
Combustion
& Atomising Air at 950 mm
(38") WG |
7.5 |
11.5 |
19 |
30 |
47 |
|
|
Gas
Capacities in Liters Per Hour
(Based on Natural Gas Cal. Value 1000
Btu/cu.ft. OR 8800 Kcal/cu.mtr) |
Burner
Designation |
64
-2 |
64
-3 |
64
-4 |
64
-5 |
64
-6 |
Air
Pressure At Burner |
|
|
|
|
|
Combustion
Air at 625 mm (25") WG |
7 |
11 |
18 |
29.5 |
45 |
Combustion
Air at 950 mm (38") WG |
8.5 |
13.5 |
22 |
35 |
54 |
|
*
For high Temp Application refer Blu
- Flam 645 Series.
* As a part of continous development
process therm - process reserves the
right to make alteration
to its products. |
|
