BLU - FLAME Gas Burners Series 645 (For
1250 0 C) |
|
|
|
|
|
| |
|
 |
- Proven
Design
- Trouble
free operation.
- High
Alloy Nozzle With Refractory
Protection.
|
|
| |
| Applications |
- Re-heat
Furnaces.
- Forge
Furnaces.
|
- High
Temp. Furnaces.
- Klins.
|
|
| |
|
| |

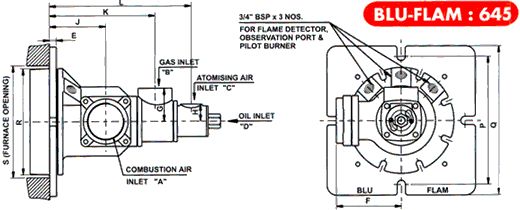

Burner
Designation |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
P |
Q |
R |
S |
645
-2 |
1 1/4" |
1" |
3/4" |
3/8" |
14 |
140 |
67 |
35 |
115 |
216 |
290 |
261 |
304 |
216 |
240 |
645
-3 |
1 1/2" |
1" |
3/4" |
3/8" |
14 |
140 |
67 |
35 |
115 |
216 |
290 |
261 |
304 |
216 |
240 |
645
-4 |
2" |
1 1/4" |
3/4" |
3/8" |
14 |
140 |
67 |
35 |
115 |
216 |
290 |
261 |
304 |
216 |
240 |
645
-5 |
21/2" |
1 1/2" |
1" |
3/8" |
14 |
140 |
67 |
35 |
115 |
216 |
290 |
261 |
304 |
216 |
240 |
645
-6 |
3" |
1 1/2" |
1" |
3/8" |
14 |
140 |
67 |
35 |
115 |
216 |
290 |
261 |
304 |
216 |
240 |
|
| |
Total
Air Capacities in Cubic Meter Per
Hour
(
Multiply by 35.28 to get CFH ). |
Burner
Designation |
645-2 |
645-3 |
645-4 |
645-5 |
645-6 |
Air
Pressure At Burner |
|
|
|
|
|
| Combustion
& Atomising Air at 625 mm
(25") WG |
70 |
110 |
180 |
295 |
450 |
| Combustion
& Atomising Air at 950 mm
(38") WG |
85 |
135 |
220 |
350 |
540 |
|
| |
Oil
Capacities in Liters Per Hour
|
Burner
Designation |
645-2 |
645-3 |
645-4 |
645-5 |
645-6 |
Air
Pressure At Burner |
|
|
|
|
|
| Combustion
& Atomising Air at 625 mm
(25") WG |
6.0 |
9.5 |
15.5 |
25.5 |
39 |
| Combustion
& Atomising Air at 950 mm
(38") WG |
7.5 |
11.5 |
19 |
30 |
47 |
|
| |
Gas
Capacities in Liters Per Hour
(Based on Natural Gas Cal. Value 1000
Btu/cu.ft. OR 8800 Kcal/cu.mtr) |
Burner
Designation |
645-2 |
645-3 |
645-4 |
645-5 |
645-6 |
Air
Pressure At Burner |
|
|
|
|
|
| Combustion
Air at 625 mm (25") WG |
7 |
11 |
18 |
29.5 |
45 |
| Combustion
Air at 950 mm (38") WG |
8.5 |
13.5 |
22 |
35 |
54 |
|
| * As a part of continous development process therm - process reserves the right to make alteration to its products. |
| |
